Mars Theatre
MARS THEATRE

Technical Information

Stage, lighting, sound, equipment, and venue specifications for productions and events at Mars Theatre.

VENUE SPECIFICATIONS

Production & Technical Information

The Mars Theatre presents high-quality entertainment through its technologically advanced sound, lighting, and movie projection equipment. To support its various programming and events, the theatre offers the following:

Technical Questions mgreer@springfieldga.org
01
VENUE

Stage

Width32′ 4″
Depth21′
Stage Height3′ 6″ from house floor
Proscenium Height16″
Proscenium Opening26′ 5″
Apron & Proscenium26′ 5″
Wing SpaceAvailable stage left
Stage ExitsStage right & left
House Dimensions60 × 32′
Balcony Dimensions22 × 32′
Front of House24 × 32′
Capacity233 seats with full ADA compliance

Stage Equipment

  • Pipe & Drape available.
  • House curtain with electric control.
  • Midstage traveler curtain, hand drawn.
  • Rear stage traveler curtain, hand drawn.
  • Off-white cyc curtain, RGB LED lit.
02
PRODUCTION

Lighting

Front of House Position

  • (6) ETC S4 26 Degree Ellipsoidal 575 watt lamp.
  • (2) Chauvet Intimidator Moving Head LED lights with color wheel.
  • (2) Chauvet Rogue (2017 Ver.) Moving Head LED lights with UV, frost, color wheels, etc.

Side Tormentor Position

  • (4; 2 units per side) ETC S4 LED Lustr+ Ellipsoidal with 50 Degree Lens.

On-Stage Side Position

  • (4; 2 units per side) Chauvet Colorado 1 Quad Tour LED Par.

Stage Backlights

  • (5) Chauvet Colorado 1 Quad Tour LED Par — rear half of stage.
  • (12) Chauvet Colorado 2 LED Par, zoomable, RGB LED — front half of stage.

Cyc Lighting

  • (4) Chauvet RGB LED bars.

Dimming & Control System

  • (2) ETC SL1219W Smart Pack – Wall Mount (24 circuits).
  • (1) ETC ColorSource 40 Control Console.
  • (2) Pathway 8 Way Repeater.
  • (5) Pipe Mounted DMX Out Receptacles (torn position, motorized hoist, backlight position and side stage positions).
  • (1) Wall Mount DMX Out Receptacle (onstage).
03
AUDIO

Sound Package

Sound Basics

  • Full range speaker system with digital mixer, 24 channels run to stage with more possible, and 4 monitor mixes on stage.
  • (2) Meyer CQ-2 Full Range FOH Speakers.
  • (2) Meyer MYA-CQ Speaker Cradle for CQ.
  • (4) Meyer UPM-1P Front Fill & Balcony.
  • (4) Meyer MUB-UPM U Bracket for UPM.
  • (1) Meyer Galileo408 4 In, 8 Out Digital Processor.

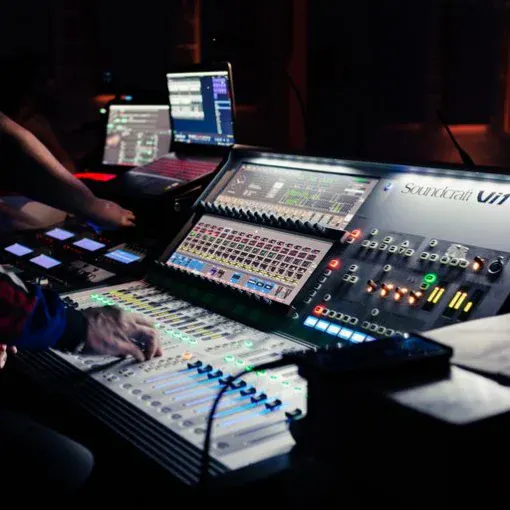

  • (1) Soundcraft VI Digital console.
  • (1) Soundcraft Mini Stagebox 32in x 8 analog x 8 digital.
  • (1) Allen&Heath AH-LED-LampX Right Angle LEDLamp.
  • (1) A&H 16ch Rack Recorder (USB out).
  • (1) Tascam CD200SB (CD Player).

Monitoring

  • (1) VUE hm-112-B4 4 Mix, 4 Wedge Monitor System.
  • 6 total VUE monitor wedges.
  • 4 total on-stage mixes.
  • Capability to run additional mixes for IEMs.
  • (1) VUE V4-i 2 mix-Power Amp.

Microphones

  • (5) Shure SM58 Vox/Instrument Mic.
  • (1) Shure Beta 58 Vox Mic.
  • (3) Shure B57 Instrument Mic.
  • (4) Shure SM57 Instrument Mic.
  • (5) Shure SM81 Mic.
  • (1) Shure B52 Drum Mic.
  • (3) Shure B98Amp/C Drum Mic.
  • (3) Shure B98H/C Clip-on Mic.

Wireless System — Shure ULXS4

  • 3 Shure B58 handheld systems + 1 ULX1 bodypack (lapel or lav).
  • OR
  • 2 Shure B58 handheld & 2 Shure ULX1 bodypack (lapel or lav).

Stands & Accessories

  • (7) Radial J-48 Active Direct Box.
  • (4) Mic Stand Short Straight.
  • (8) Manhasset Lyric Stand with LED stand lights.
  • (10) K&M Mic Stand Tall Boom Stand.
  • (6) K&M Mic Stand Straight Heavy Based Stand.
  • (4) K&M Mic Stand Short Boom Stand.
  • (5) Guitar Stand, various configurations.

Cabling & Connections

  • (~15) AT Cable 10′ XLR.
  • (~20) AT Cable 25′ / 50′ XLR.
  • (2) AT Cable 75′ XLR.
  • (1) 6 Ch. Mini Snake.
  • (8) SpeakON cords + (4) SpeakON links.
  • (3) LEX 50112BA E-STRING (power outlet snake).
  • (4) Surge Protector Strip.
  • (4) 10′ Extension Cord.
  • (2) Whirlwind MS-12-M-NR-50 12CH Subsnake.
  • Side-stage I/O: 24 XLR inputs, 4 SpeakON outputs, 4 XLR outputs. Additional inputs/outputs can be arranged as needed.
04
EQUIPMENT

Miscellaneous

  • Bus Fuses.
  • XLR Splitter (1).
  • 20a Plug to NEMA Plug (2).
  • RCA – XLR (2).
  • Monitor Adapter for running headphones as needed on stage.
  • Misc adapters.
  • Guitar/instrument cables.
  • Bar stools — full height (3).
  • Bar stools — half height (3).
  • Stage Rug – Grey (1).
  • Power outlets on both sides of stage and front floor boxes on isolated circuits.
  • (1) 8x8x24 Drum Riser, movable and collapsible (4x 4x4x24 units).
05
BACKSTAGE

Accommodations

  • Green Room located behind the stage.
  • 2 Private Dressing Rooms with attached bathrooms.
  • WiFi throughout building.
06
ARRIVAL

Loading & Parking

  • Back stage double door into wing space.
  • Side ramp into wing space and stage.
  • No permits required for buses or trailers.
  • Parking available behind or beside theatre.
